¡Viendo video 3D esterescopico en pantallas 2D!
¡Hasta con Ambient light y CONVERSION HDR A SDR!

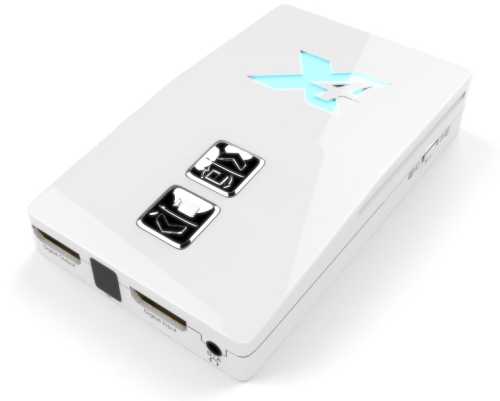

HDFury x4 es un dispositivo de manipulacion del video multiproposito, ya que puede hacer diferentes tareas, como el manejar video 3D y hacer el despliegue secuenciado de los cuadros cuando los envia al aparato de despliegue de imagen conectado a sus salidas de video. De esta manera HDFury se encarga de recibir las imagenes 3D [secuencial o SbS o TaB] y sincronizarls con unas lentes 3D pasivas o unas activas comprando el transmisor RF opcional. Tambien puede hacer el paso de leer los metadatos HDR aplicarlos y el video resultante enviarlo a sus salidas para mostrase con el efecto HDR en pantallas NO-HDR.
3D Conversion Key Features
- Add HDMI 2D and 3D to ANY TV, Monitor, Proj (even 60hz TV !)
- Display HDMI 2D and 3D content on Digital and/or Analog display
- 3Dfury can output in both Digital and Analog Video/Audio simultaneously !
- Therefor acting as an advanced digital/analog splitter.
- Double and Triple frame 1080p24 material up to 1080p72
- 3D mode output up to 720p144
- Dual projectors setup using two 3Dfury modules and passive glasses.
- Up to 720p288 and/or 1080p144 in dual projectors setup !
- 7.1 Dolby® True HD & DTS Master Audio
- Input: HDMI 1.4 (HDCP compliant) input with 3D and Deep Colour support
- Output: Digital HDMI / DVI-D and/or Component (YPbPr/YCbCr) and VGA (RGBHV) video output
- Advanced SimulView support (through Glasses and Emitter or through Stream Control)
- All modes autodetected if possible, otherwise can be forced via button
- 3-pin mini-DIN Sync Out (for optional emitter)
- Dynamically create EDID based on Sink EDID parameters
- Customisation settings available through DIP SWITCH and buttons
- Perfectly and automatically center image in all standard NTSC/PAL component modes
- Manually adjust horizontal screen position in all NTSC/PAL RGBHV modes
- Performs Colour Depth Upscaling in all modes (ON/OFF user selectable)
- Horizontal and Vertical Sync Polarity Inverter included
- Automatic SD/HD color-space selection
- Accept third party accessories on its output
- Improved output cable driver for driving long cable runs (40-50′)
- Software/Firmware upgradeable through USB
Sound output:
- Analog and Digital Optical (S/PDIF 5.1 Dolby/DTS) through an innovative 3.5mm combo jack and 7.1 DTS-MA & Dolby True HD via HDMI output
- HDMI audio passthrough
Input/Output mode:
- 2D VIDEO MODE COMPATIBILITY:
* NTSC 480i/p, PAL 576i/p, HDTV 720p/1080i/1080p
- 2D OUTPUT:
* 2D movies: 1080p24, 1080p48, 1080p72 (3Dfury can double and triple frame from 24hz material)
* 720p60, 720p120 (double frame from 720p60)
* Passthrough any resolution
-
3D MODES INPUT COMPATIBILITY:
- Full3D HD 1080 (per HDMI) (Blu-ray): 1920 x 2205 24Hz
- Full3D HD 720 (per HDMI) (Blu-ray): 1280 x 1470 60Hz

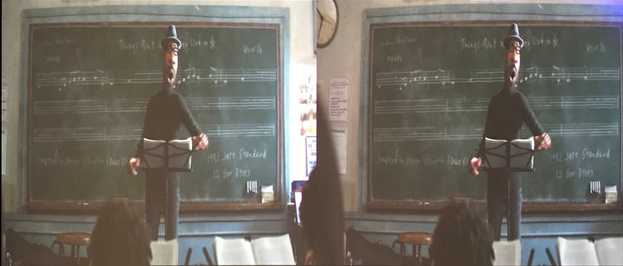

- SbS/TaB 1080p 24Hz to 60Hz: 1920 x 1080
- SbS/TaB 1080i 50Hz/60Hz: 1920 x 1080
- SbS/TaB 720p 30Hz/50/60: 1280 x 720
- SbS 1080p 24Hz to 60Hz: 1920 x 1080
- Frame packed 1080p/720p 24Hz/30/50/60
3D OUTPUT:
- 720p60, 720p72, 720p96, 720p120, 720p144 Frame Sequential
- 720p and/or 1080p for 60hz display
- 1080p60, 1080p72
Y en PC soporta pass-through para permitir el paso directo de la resolucion y cantidad de color que configuremos en el panel de control de windows/mac/linux.
HDfury X4 Key Features
- Display HDMI content on ANY HDMI/DVI-D/RGB/VGA/YUV TV, Monitor or Projector
- Always display any HDMI content at your display max resolution
- HDfuryX4 can output in both Digital and Analog Video/Audio simultaneously !
- Therefor acting as an advanced digital/analog splitter.
- Double, Triple, Quadruple frame 1080p24 material up to 1080p96
- Double Frame 720p50 and 720p60 into 720p100 and 720p120
- Transcoder and Scan converter, Toggle 50/60Hz or PAL/NTSC at will.
- Any input can be up or down-scaled to a specified resolution up to 1080p96 for HDTV
- Any input can be up or down-scaled to a specified resolution up to 1920×1200 for PC mode
- 7.1 Dolby® True HD & DTS Master Audio
- Input: HDMI 1.4 (HDCP compliant) input with 3D and Deep Colour support
- Output: Digital HDMI / DVI-D and/or Component (YPbPr/YCbCr) and VGA (RGBHV) video output
- 3 Aspect Ratio Modes (Full Width, Full Screen, Original, read FAQ for more details)
- Custom porch settings, resolution and refresh rate adjustment through Windows Software.
- Dynamically create EDID based on Sink EDID parameters
- Customisation settings available through DIP SWITCH and buttons
- Perfectly and automatically center image in all standard NTSC/PAL component modes
- Manually adjust horizontal screen position in all NTSC/PAL RGBHV modes
- Performs Colour Depth Upscaling in all modes (ON/OFF user selectable)
- Horizontal and Vertical Sync Polarity Inverter included
- Automatic SD/HD color-space selection
- Accept third party accessories on its output
- Improved output cable driver for driving long cable runs (40-50′)
- Software/Firmware upgradeable through USB
- Special software available for Mits RPTV and others 1080i display.
Sound output:
■ Analog and Digital Optical (S/PDIF 5.1 Dolby/DTS) through an innovative 3.5mm combo jack and 7.1 DTS-MA & Dolby True HD via HDMI output
■ HDMI audio passthrough
.
